1 3

Clopod

Home Guard

Order Type
Minimum Order Quantity

Ready-made products: 5 sets
OEM/ODM: Please request a quote

Production Lead Time

As ready-made products are in stock, there is no production lead time, and OEM/ODM will inform you of the production lead time through quotation.

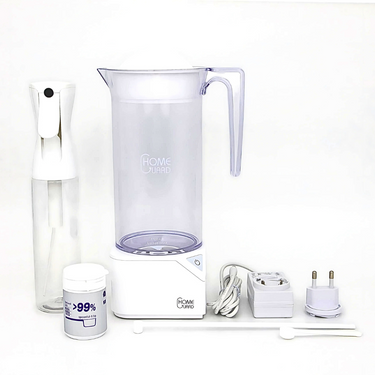

Product Composition
Safe and Eco-Friendly Sterilizing Water With Natural Components Easy to use at home!① Pitcher Lid ② Pitcher (1L) ③ Electrode Part ④ Body ⑤ Operation Button
⑥ Spray Head ⑦ Spray Water Bottle (300ml) ⑧ Stick for Dissolving Salt
⑨ Adapter ⑩ Adapter Plug ⑪ Salt (70g) ⑫ Spoon (adding 2g Salt)
Product Specification
Model Home Guard
Properties of Production Hypochlorous Acid,(WI+)
Sodium Hypochlorite (with salt)
Product Standard Feature: 134X134X290(mm) (WxDxH)
Spray: 60X60X240(mm) (WxDxH)
Rated Voltage Input AC 220V 60Hz
Output DC 9V 3.0A
Weight 478g
Capacit Spray: 300ml Pitcher: 1L
Materia ABS + PP

Product Brochure
Order Type
  • Tested sterilization effectiveness for COVID-19
  • Loaded double layered (Double layered Electrodes, DLE) metal lath made from proprietary patented electro-optic manufacturing technology
  • Produce strong sterilized and deodorized water within 5 minutes.
  • Smart Current Control circuit technology fully satisfies the Food and Drug Safety Standards
  • Manufacture of different types of electrolyte depending on the type of additive (Salt: Sodium Hypochlorite, WI+: Hypo Chlorous Acid)
  • High convenience using only water or water and a small amount of additives (food additives)
  • High durability (excellent economics)
  • Completed obtaining various accreditation reports
d43c41af1a210.png__PID:23928f65-d5c3-4457-b1d9-4814596f7461

Powerful Sterilization · Deodorization

99% of only natural ingredients and tap water

8ad428b36c2cd.png__PID:3aac0a9e-2831-430a-a94c-8f95725f162b

Safety

Safely responsible for health with Smart Current Control

d982a2a35a4e9.png__PID:2d872448-2ac4-463e-8849-efa5ff92f33a

Rapidly

Fast and Quickly in 5 minutes

a04001b003ecc.png__PID:2ac4863e-c849-4fa5-bf92-f33adfbd801b

Economic Efficiency

Produce long-term Sterilized water

cc8e5a47f1202 (1).png__PID:24482ac4-863e-4849-afa5-ff92f33adfbd

Usability

According to purpose, able to select and produce

Product Usage

9b0e8807e07f9.jpg__PID:6edde76d-73ed-44d5-bd30-8290acba6d12

Kitchen

Sterilization of various kitchen tools, Removing residual pesticide from food ingredients and refrigerator and Sterilization and cleaning

51d64f492aae1.jpg__PID:656edde7-6d73-4d14-957d-308290acba6d

Bathroom

99.9% deodorization of internal bacteria

cf35ed313a579.jpg__PID:68656edd-e76d-43ed-94d5-7d308290acba

Indoor

Textiles which are hard to wash like bedding and sofas and mites removal and cleaning, Air purification

a60bcf5dab40a.jpg__PID:d068656e-dde7-4d73-ad14-d57d308290ac

ther things

Hand sanitization, Sterilization/deodorization such as childcare products and In-car deodorization

Certification · Patent · Technology

COVID-19 sterilization and disinfection test report
Sterilizing water production device using low-salt water or fresh water
Portable sterilizing cleaning water generating device using low-temperature plasma
Underwater low-temperature plasma generator for generating hydroxyl radicals
Electrode structure for obtaining high concentration hypochlorous acid aqueous solution from sodium chloride aqueous solution and method for producing sterilizing water using the same
Sterilizing water generating device with split partition
Electrode structure for underwater low-temperature plasma generation

Product Manual

Mode
Single Mode (5 minutesoperation)
20231120_132218.png__PID:ca01df1b-5cab-45fc-9dd1-31069b43e695

01

Pour 1L of tap water to the pitcher.

20231120_132402.png__PID:1836b1ff-e152-4b2f-9e1e-c88bb745a2bc

02

Add salt as necessary.
*Refer to the recipe book

20231120_132418.png__PID:f31836b1-ffe1-42fb-afde-1ec88bb745a2

03

Stir lightly in the pitcher with a long spoon.

20231120_132443.png__PID:12682715-13ed-44cb-80c9-2cf2acb3af63

04

Press the button briefly

20231120_132453.png__PID:bc126827-1513-4da4-8b80-c92cf2acb3af

05

After operation, add the electrolyzed water to the spray.

20231120_132506.png__PID:a2bc1268-2715-43ed-a4cb-80c92cf2acb3

06

Sterilize or Deodorize with semi-automatic spray.

Checklist Before Use

  • Do not use in a closed space; use in a well-ventilated place.
  • Do not intentionally inhale or drink. If excessive amounts are inhaled or consumed, seek medical attention.
  • Do not spray in eyes. If it gets into your eyes, rinse immediately with plenty of water and seek medical attention if necessary.
  • Wash your hands after use. Avoid contact with sensitive or injured skin.
  • Please keep out of reach of children, infants or animals.
  • Do not use near heaters or fires.
  • Do not spray or inhale into the respiratory tract of humans or animals.
  • When using for baby products or items that may come in contact with the mouth, rinse with running water after using electrolyzed water and dry.
  • Electrolyzed water can be used to sterilize humidifiers, but do not operate the humidifier with electrolyzed water in it. After sterilization, rinse thoroughly with running water.
  • Add water and salt in the correct amounts according to the instructions, and stir well before operation. It is normal for the warning mode to sound if the amount of water is small, if too much salt is added, or if the salt does not dissolve well.
  • Use only the enclosed 99% purity refined salt and never add anything else. Do not use industrial salt (rock salt) or bamboo salt.
  • Be sure to install the product horizontally and do not move the product during operation.
  • Operate only once after adding salt. If operated multiple times, too high a concentration of electrolyzed water is produced.
  • Do not operate the product more than 3 times in succession. There is a risk of fire due to overheating and damage to the device.
  • Immediately after operating the device, the contact terminals of the main body and features may be hot. Be careful not to touch it.
  • Please be careful as there is a risk of discoloration or deformation when using on textiles, leather, or metal.
  • Do not store electrolyzed water in a drinking water bottle or store it in the refrigerator. It may be confused with drinking water.
  • When pulling out the adapter plug, be sure to hold the plug body and pull it out. If you pull out the cord only by holding it, it may cause damage or electric shock.
  • Make sure that water does not enter the adapter body.
  • Do not touch the adapter or outlet with wet hands.
  • If possible, use it alone in an outlet connected to an earth leakage circuit breaker.
  • Do not insert electrically conductive objects such as metal into the feature. It may cause a malfunction.
  • Do not disassemble or modify the device.
  • If not used for a certain period of time, disconnect the adapter from the outlet.
  • If the adapter is damaged, never disassemble or replace it arbitrarily. Please have it repaired or exchanged through customer service.
  • Always use it safely according to the instructions in this manual.
